Anti-static HPL Raised Floor

Anti-static HPL Raised Floor

The panel is made of high quality cold-rolled steel sheet. The bottom sheet is used ST14 stretched steel. Which are punched, spot-welded, coated with epoxy powder after being cleaned and infilled the foamed cement. The finish covered the anti static HPL. The edges of panel are trimmed with 4 pieces black PVC. The panel is high capacity, easy installation, elegant appearance, fouling resistance, corrosion resistance, long using life, excellent waterproof and fireproof performance.

Request A Quick Quote Now

Request A Quick Quote Now

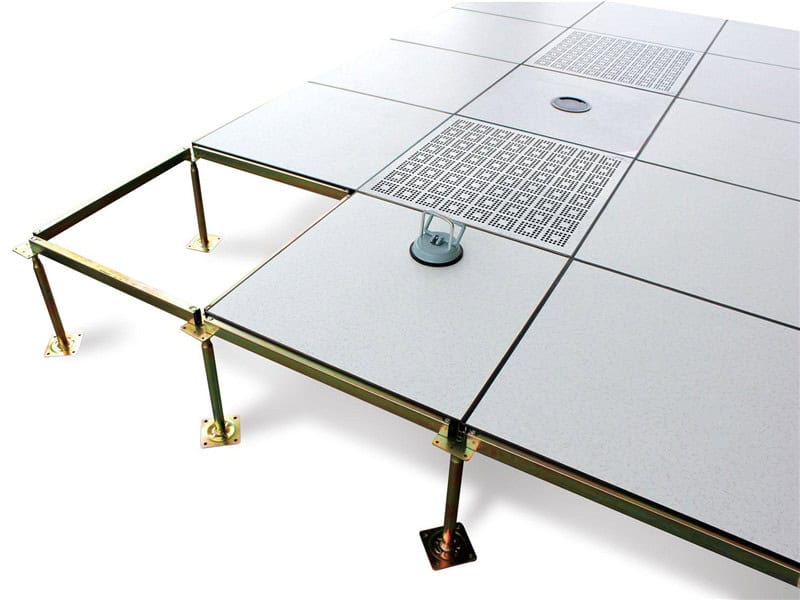

Anti static Raised Floor System

A perfect combination of anti-state flooring made of steel cementitious raised floor and HPL on top, makes anti static raised access floor an ideal choice. Its borders are trimmed with conductive rubber edges to provide the finest look. These anti-rust and anti-soil tiles always look clean as brand new. In fact, you don’t have to spend much on maintenance of these tiles. Now, get these durable and cost-effective anti-static energy-efficient raised access floors right away.

Panel Data

Model FS662-FS2500
Dimension 600*600mm
Dimension tolerance 0-0.4mm
Thickness 35mm
Tolerance of flatness less than 0.5mm
Panel surface HPL finish
Panel weight 14-18kg/pc
Material steel, cement, powder
Installation stringer system


Floor finish height(FFH)50mm-2.5m
Coloryellow, white
Coatingzinc/hot-dip galvanizing
Axial load22.5kn


Computer room, data center, control room, laboratory, office building, bank, post telegraph, power control center, workshop and places where require anti-static environment or have many wires.


  • Excellent anti-static performance
  • Flame retardant, anti-skid, anti-rust, anti-soil
  • Mighty glue, strong wearability, non-bubble, non-degumming
  • Class A flame spread and smoke development rating

Technical Parameter

TypeSizeRolling loadUniform loadUltimate loadConcentrated load
10PASS10KPAAASS2.5mm deflection2.0mm deflection


1.Q:Can your factory supply OEM service?
A:Yes, your logo & brand can be punched on panel & accessories according to your design.

2.Q:How about the delivery time?
A:Depend on your quantity. As the regular specification for one 20ft container of raised floor will be 10 days. Of course, if it’s urgent, Titan raised floor can help to arrange it accordingly.

3.Q:What’s your warranty?
A: More than 10 years warranty.

4.Q:How you assure the quality?
A:As the original and professional manufacturer of raised floor, we own an QC team, to inspect and guarantee each production process, regarding to incoming raw material quality, process quality, testing result, existing problems during work.

5.Q:What are your payment terms?
A:We have 2 main payment terms, as below
T/T:30% deposit and the balance should be paid against B/L.
L/C:L/C at sight. For exclusive agents, we support long-term L/C sometimes.

6.Q: Is the free sample available?
A: Yes, of course. We are glad to provide free samples immediately.
