Aluminum Window Panel
Aluminum window panel is reprocessed on the basis of solid panel, panels are interchangable with solid panels. This special panel allows person to check and monitor the situation beneath the raised floor.

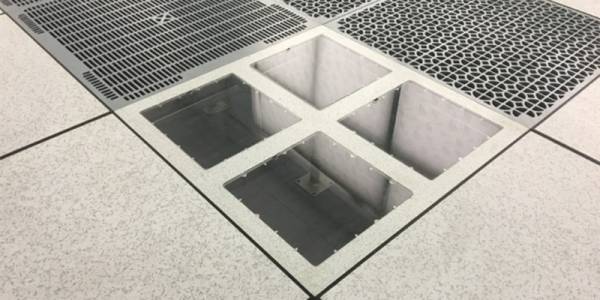

We can customize window size and quantity as project request, there are single window panel, double windows panel and four windows panel. Window covering is high-strengh acrylic, which can undertake heavy static and dynamic load.
Request A Quick Quote Now
Aluminum Window Panel System
Aluminum window panel system performs much more efficiency on air control in computer rooms. Window panel can be matched with aluminum anti-static raised floor panels or perforated panels. The raised floor will be with a safety factor of three times the concentrated (design) load, and is capable of meeting static and dynamic loads per CISCA Platform (Raised Access) Floors Performance Specification.
Panel Data
| Model | AL500-AL1000 |
| Dimension | 600*600mm |
| Dimension tolerance | 0-0.4mm |
| Thickness | 35-55mm |
| Tolerance of flatness | less than 0.5mm |
| Panel surface | PVC |
| Panel weight | 9-13kg/pc |
| Material | Aluminum |
| Ventilation rate | 0% |
Understructure
| Floor finish height(FFH) | 50mm-2.5m |
| Material | aluminum/steel |
| Color | yellow, white |
| Coating | zinc/hot-dip galvanizing |
| Axial load | 22.5kn |
Application
Aluminum raised floors can be used in the following fields: microelectronics industry (wafer plant, TFT/LCD, packaging and testing, printed circuit boards), semiconductor industry, flat panel display industry, optoelectronics, life science industry, precision engineering and ultra-clean environmental electronics industry.
Characteristics
- Patent design with monitor function
- Conductive and static dissipative coverings
- Contains no ferrous materials to disrupt magnetic fields
- Die cast aluminum panels meet call A1 fire rating
- Good performance of waterproof
- Pollution and radiation free
- Recyclable and economic system
- Various pedestals and structure system
Technical Parameter
FAQ
1.Q:Can your factory supply OEM service?
A:Yes, your logo & brand can be punched on panel & accessories according to your design.
2.Q:How about the delivery time?
A:Depend on your quantity. As the regular specification for one 20ft container of raised floor will be 7 days. Of course, if it’s urgent, Titan raised floor can help to arrange it accordingly.
3.Q:What’s your warranty?
A: More than 10 years warranty.
4.Q:How you assure the quality?
A:As the original and professional manufacturer of raised floor, we own an QC team, to inspect and guarantee each production process, regarding to incoming raw material quality, process quality, testing result, existing problems during work.
5.Q:What are your payment terms?
A:We have 2 main payment terms, as below
T/T:30% deposit and the balance should be paid against B/L.
L/C:L/C at sight. For exclusive agents, we support long-term L/C sometimes.
6.Q: Is the free sample available?
A: Yes, of course. We are glad to provide free samples immediately.
Why aluminum window panel?
Aluminum raised floors’ main applications are clean room, electronic workshops, etc. These environments have lots of Integrated circuits (ICs), which are used on a large scale in integrated circuits. They are more difficult to withstand higher voltages than discrete components. In particular, field-effect transistors must be avoided. Static electricity comes into contact because static electricity can range from tens of volts to more than a few hundred volts and even reach thousands of volts, easily breaking down integrated circuits. Therefore, the electronic dust-free workshop should pay special attention to the generation of static electricity, and it is best to fundamentally eliminate the generation of static electricity.
Compared with other raised floor types, aluminum raised floor has a lightweight and very high load capacity. After installation, it is very stable and will not slide or become wavy due to heavy objects’ passing. Simultaneously, the aluminum raised floor is corrosion-resistant, and there is no treatment on the floor surface, no dust will generate.
